Russian Submarine Models

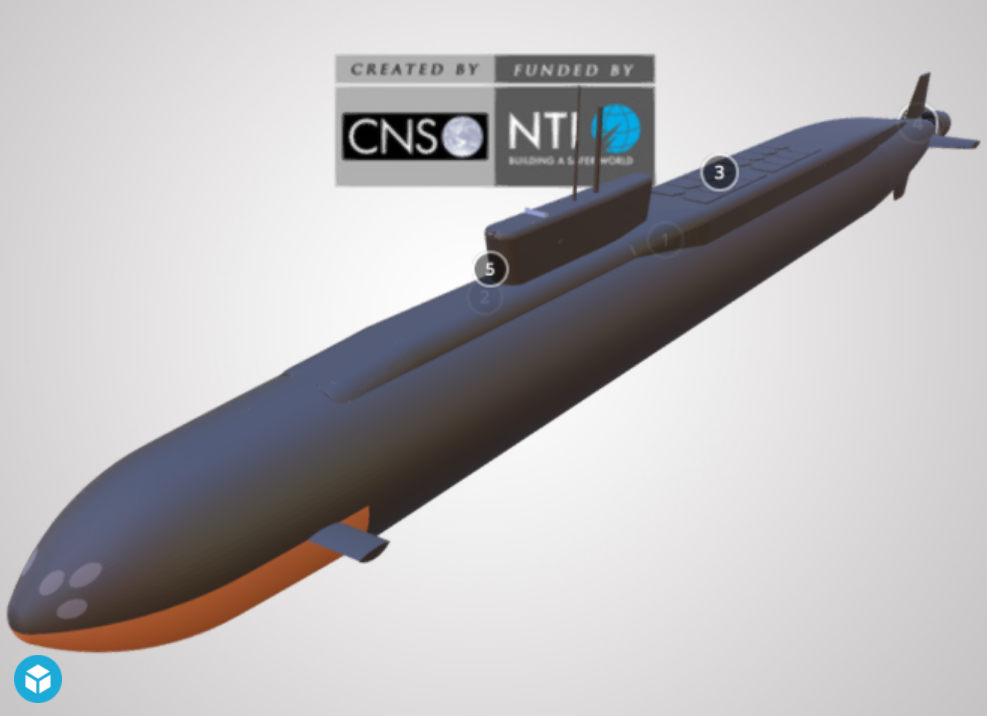

Name: Borei Class Submarine
Other names: None
Type: SSBN
Length: 170m
Diameter: 13m
Missiles: 12-16 Bulava SLBMs
Torpedoes: Unknown


Sources:
[1] “Source: Nuclear submarines “Prince Vladimir” and “Kazan” will become part of Navy in 2018, 16 July, 2016, http://www.tass.ru.
[2] Franz-Stefan Gady, “Russia Will Start Constructing New Ballistic Missile Submarine In December”, 3 November, 2016, http://www.thediplomat.com.
[3] “Silent sub: Russian Noiseless Borei Class Nuclear Submarine Immersed”, 30 December 2012, https://www.rt.com.​
[4] Franz-Stefan Gady, “Putin’s ‘Red October’: Russia’s Deadliest New Submarine”, 4 March 2015, http://the diplomat.com.​

Name: Status-6
Other names: Kanyon
Type: UUV
Length: 24m
Diameter1.6m
Payload: Thermonuclear (Salted) *


Sources:
[1] Jeffrey Lewis​, "Putin's Doomsday Machine," 12, November 2015, http://www.foreignpolicy.com.
[2] Stenen Pifer​, "Russia’s perhaps-not-real super torpedo," 18 November, 2015,  https://www.brookings.edu.
[3] Bill Gertz​, "Russia Building Nuclear-Armed Drone Submarine," 8 September, 2015, http://www.freebeacon.com.​

December 1, 2016
Table of Contents:
About

This page contains interactive 3D submarine models for Russia. Users can drag the model by pressing and holding their mouse’s scroll wheel. They can zoom in and out on the model by rolling their scroll wheel up and down, and can orbit the model by clicking and dragging their left mouse button.
